New Home Frame Up Inspections

Don't expect what you don't inspect . This makes sense. The following are a few examples of homes that were inspected during the frame up at the rough in stage. A rough in inspection has thousands of components to check. It is a detailed inspection that requires expertise and a code certified inspector.

Here are a few of the common problems found during the rough in inspection

Missing Anchor Bolts at base plate as per code

12 inch rule IRC R-403.1.6)

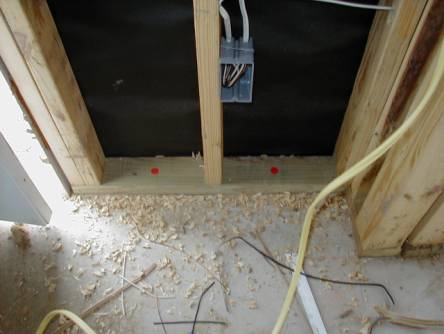

Missing nail or strike plate at PVC drain line as per code

IRC 3702.1

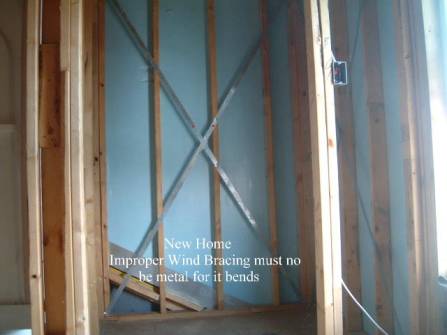

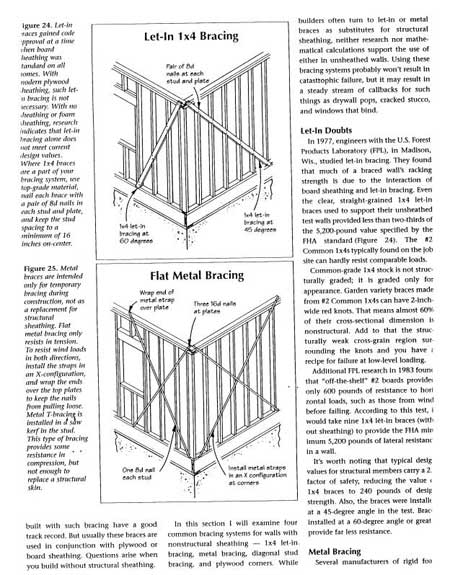

Improper wind bracing

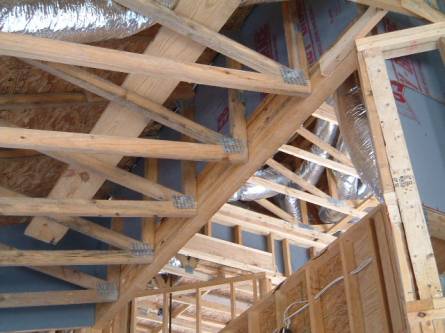

Missing Joist Hangers as per code (IRC 504.2)

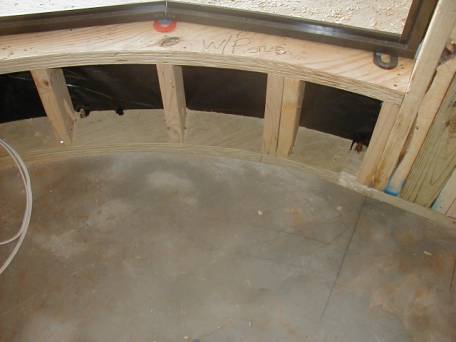

Note the anchor bolt that was missed on the left edge (IRC R-403.1.6)
